Description

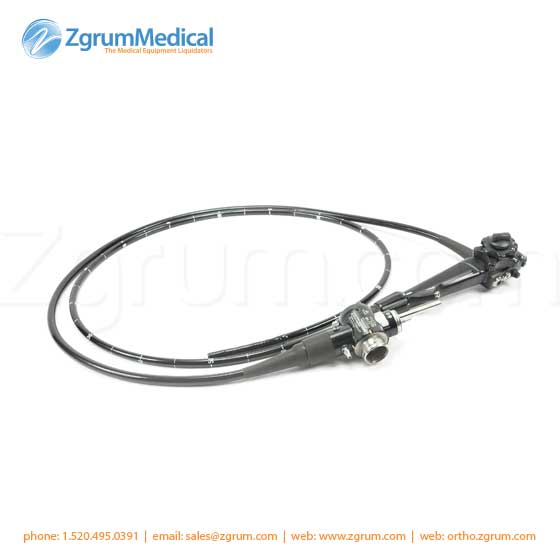

The Olympus PCF-160AL Pediatric Video Colonoscope is part of the Olympus Evis Exera.
It features variable stiffness and a breakthrough design that lets you adjust the insertion tube flexibility to match the internal contours of the colon for more precise control. It also features a narrow 11.5 diameter insertion tube assuring a smooth insertion.
The PCF-160AL is designed for the toughest cases with its slim and user-adjustable flexible insertion tube that is ideal for all colonoscopic applications.
Main Features
� The flexibility of the variable stiffness insertion tube can be adjusted to suit the internal conditions and contours of the colon, simply by turning a knob below the control section.
� The PCF-160AL is slimmer than conventional colonoscopes with a 11.5 mm outer diameter insertion tube, yet still featuring a channel with 3.2 mm inner diameter that is suitable for routine colonoscopy.
� Superior image quality is delivered even in the expanded full height mode when combined with the dedicated CV-160 and CV-180 video systems.
� Extra-wide 140 ° field of view and extensive 4-way angulation - 180 ° up/down and 160 ° right/left - enable complete and comprehensive examination of the colon.
� The ergonomically designed grip enhances scope maneuverability while the redesigned easy-to-access knobs and user selectable switches improve operability.
� Fully compatible with the CV-180 , CV-160 , CV-140 , CV-100
� The scope ID function stores Each scope information and displays it on the monitor to facilitate endoscopy suite management.
See the Olympus PCF-160AL Brochure here
| Product Information | ||
|---|---|---|
| Class | Flexible Video Endoscope | |
| Product Name | Olympus PCF - 160AL Pediatric Video Colonoscope - 3013 | |
| Manufacturer | Olympus | |
| Mfg. Catalog # | PCF-160AL | |
| Type of Scope | Colonoscope | |
| Scope Series | 160 Series | |
| Mfg List Price | 29000 | |
| Pictures | These pictures are for display purposes only | |
| SKU | pcf-160al-colonoscope-3013 | |
| Manufacturer Specifications | ||
|---|---|---|
| Angulation | Angulation Range Up | 180 |
| Angulation Range Right | 160 | |
| Insertion Tube | Insertion Tube Diameter | 11.5 mm |
| Instrument Channel Diameter | 3.2 mm | |
| Working Length | 168 cm | |
| Total Lengh | 200 cm | |
| Optical System | Field of View | 140 |
| Direction of View | Forward | |
| Depth of Field | 3-100 mm | |
| Condition | ||
|---|---|---|
| Condition | Pre-Owned | |
| Overall Condition | Excellent | |
| Compatible With | |||
|---|---|---|---|
| Light Sources | Olympus CLV-U20 | ||
| Olympus CLV-U40 | |||
| Processor | Olympus CV-100 | ||
| Olympus CV-140 | |||
| Olympus CV-160 | |||
